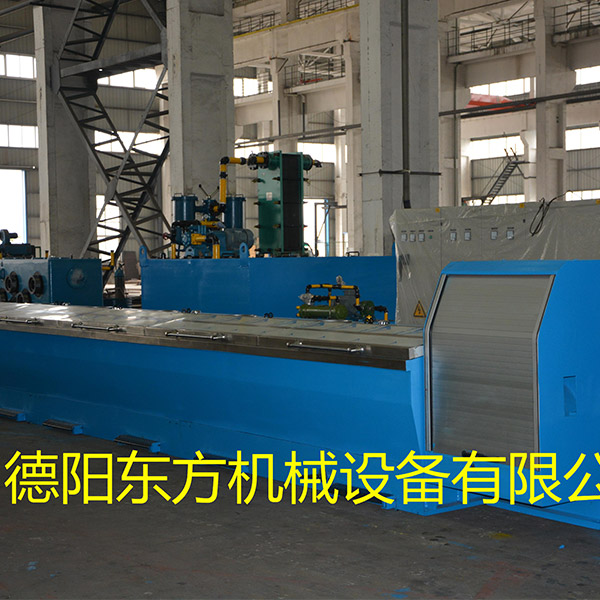

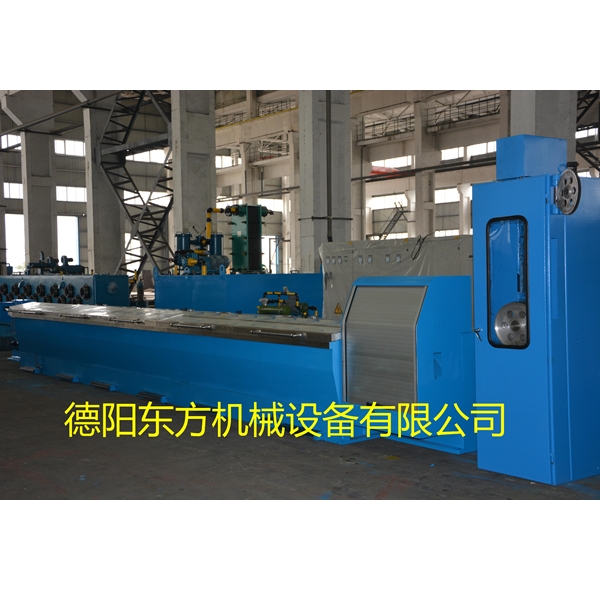

本机用于将φ9.5mm铝合金杆及普通铝杆拉制成φ2.1--4.5mm的铝合金线或普铝线。拉线轮采用一列式倾斜排列, 连续拉制, 机械电气速度均衡匹配, 操作方便, 能实现快速换模,自动不停机换盘收线。本机具有操作方便, 生产效率高, 产品质量好等优点. This machine is mainly used to draw φ9.5mm aluminum alloy rod or ordinate aluminum rod into φ2.1--4.5mm aluminum alloy wire or ordinatie aluminum wire. The drawing cones are rowed in a in-line lean way and it can draw wires continuously. Electricity and the velocity match propotionally so it can realize auto-changing of models and auto-changing of coils and taking-up without power off. It is easy in operation, high in efficiency and high quality of products.
型 号 | LFD-450/10 | LHD-450/13(铝合金) |
主要组成 | 放线架、轧头机、主机、收排线架、电控 | 放线装置、主机、储线装置、双盘收线装置、轧头机、电控 |
特点 | 单独传动,交流电机,变频控制,工作电流约12安,耗能降低、节能明显。 | 拉线轮一列排列,连续拉制,机械、电气速度均衡匹配,操作方便,连续换模、自动不停机换盘收线。 |
进线直径(mm) | 9,9.5 | 9.5-12 |
出线直径(mm) | 1.7-2.25 | 1.8-4.5 |
出线速度(m/s) | 6.08, 8.05, l2.24 | 25 |
最多拉伸道数 | 10 | 13(直排式排列、快速换模) |
出线鼓轮直径(mm) | 450 | 450 |
主电机功率(kw) | 7/9/12 (YDl80L-8/6/4V1) | Z4-315-22 315KW Z4-180-22 75KW |
收线盘尺寸(mm) | Ø400×Ø160×250 | PND500、PND560、PND630 |
外形尺寸(mm) | 12000×3800×2700 | 23220×4400×4500 |
